multi-needle quilting machine

Home Product



       Products
HY-W-DGN Computerized Chain Stitch Multi-functional Quilting Machine

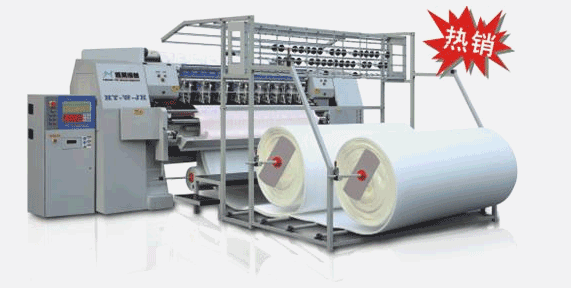

HY-W-JH Computerized Chain Stitch Multi-needle Quilting Machine
HY-94-3JLD Computerized Chain Stitch Multi-needle Quilting Machine
Computerized Lock Stitch Multi-needle Quilting Machine
  HY-64-2, HY-94-2, HY-94-3, HY-128-3
  HY-94-3,HY-98-3,HY-118-3,HY-128-3
HY-XS64-2, HY-XS128-2 Computerized Rotating Shuttle Multi-needle Quilting & embroidery Machine
Computerized Panel Cutter Machine
  HY-QG-5
  HY-QG-2
  HY-QG-3
High ��?speed Shuttle Core Winding Machine
Material Rolling Device
Mattress machinery
  HY-W-JHMattress machinery
  HY-QG-3Mattress machinery







       Product
[NEW]NEW PRODUCT
MODEL NUMBER: HY-XS64-2,HY-XS128-2
PRODUCT NAME: Computerized Rotating ShuttleMulti-needle Quilting & embroidery Machine, Multi-needle quilting machine

Company name: Hengye Machinery Co.,Ltd of Dongguan City
Tel: +86-769-22264807 22291362
Fax: +86-769-22663246
E-mail: hengye@hengyejixie.com
Chinese Website: www.hengyejixie.com
English Website: www.quiltingmachinery.net
                                    www.quiltingmachinery.com
multi-needle quilting machine, quilting & embroidery machine, embroidery machine. Purpose: It is widely used for quilting high-quality bedding covers, quilt covers, garments, seat-covers and household ornaments. Different patterns are available.

1. Front and back needle bar structure with the minimum needle space-1 inch
2. The moving structure of needle bar is without needle post to avoid dirtying the materials
3. Compared with embroidery needle head, moving structure without needle post is more durable and can save more maintenance expenses
4. Quilting and embroidering in one time
5. Based on CAD drawing, simple learning and easy operation
6. Different patterns in each line can be quilted on 3.2m fabric and patterns can strongly combine.
7. Large storage that can save 1000 patterns
8. Running state testing and indicating in order to show how the machine works
9. Top thread break can be tested by advanced and practical testing function
10. Automatic needle-lifting and digital speed adjustment



Parameter Unit ( mm )

Specification

HY-XS64-2

HY-XS128-2

Dimension
(L*W*H)

3930*1100*2170 5800*980*1950

Speed(RPM)

250~600

250~600

Stitch length(mm)

0.15-12.7mm

0.15-12.7mm

Rotating shuttle

big-size

big-size

Needle bar

2bars

2bars

Needle layout

Every other slot in parallel

Every other slot in parallel

Horizontal needle space

50.8mm(2inches)

50.8mm(2inches)

Vertical needle space

76.2mm(3inches)

76.2mm(3inches)

Needle quantity every bar

32(PCS)

64(PCS)

The maxium length of needle bar

1625mm(64inch)

3276mm (129inch)

X

205mm(8inch) 305(12inch)

Pattern length

203.2mm(12inch)

304.8mm(12inch)

Stitch quantity

1,200,000stitches

1,200,000stitches

Pattern Stock

1000pcs

1000pcs

Power

4.62kw

5-6.5kw

Power supply

380V/50HZ
220V/60HZ

380V/50HZ
220V/60HZ

KG

2200KG

3000KG
